Adapter for plate heat exchangers

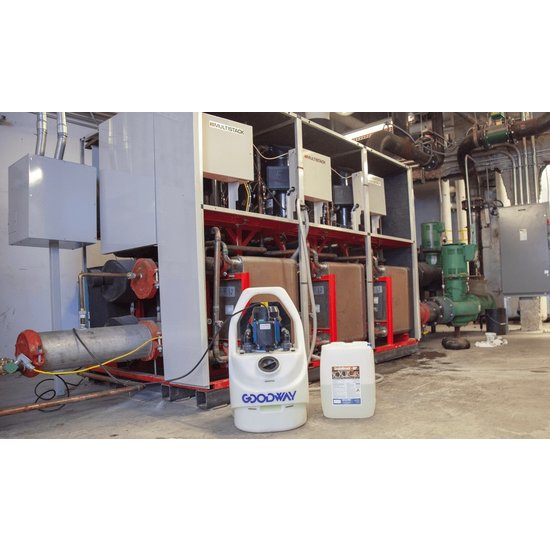

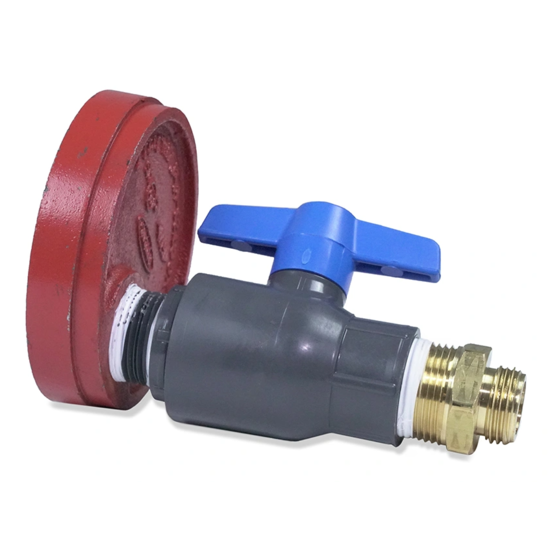

Goodway Benelux supplies couplings to connect Goodway flushing pumps directly to ''Gruvlock'' couplings of modular chillers from Multistack or other manufacturers. Connect 2 couplings to the top and bottom of the brazed plate heat exchanger and then connect a Goodway GDS-C40 or GDS-C92 flushing pump. Select the correct dimensions to order the corresponding coupling pieces.

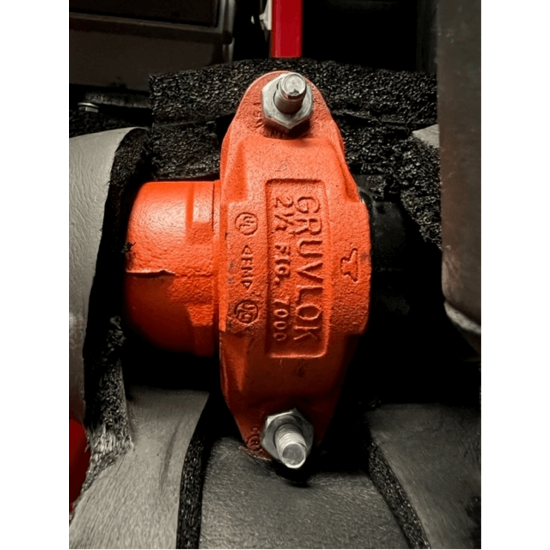

Below you will find an overview of various model numbers of Multistack modular chillers. This includes the type and size of the ''Gruvlock'' coupling and the associated Goodway coupling piece.
- Model number: MS010, MS015, MS020, MS030 = 2'' Gruvlock coupling = Goodway adapter GDS-MSA-200.
- Model number: MS050, MS070 = 2.5'' Gruvlock coupling = Goodway adapter GDS-MSA-250.
- Model number: MS085, MS080T = 3'' Gruvlock coupling = Goodway adapter GDS-MSA-300.
- Model number: MS105, MS135, MS145, MS165 = 4'' Gruvlock coupling = Goodway adapter GDS-MSA-400.
