The Goodway GDS-C92 is a compact descaling pump system developed to clean and descale small and medium sized installations using the CIP (clean-in-place) procedure. The GDS-C92 is suitable for circulating volumes up to 400 litres.
Customer reviews:
We have recently purchased a Goodway descaling pump system, and our engineers are very satisfied with it. We are using the descaling pump system for the chemical cleaning-in-place of some of our plate coolers on board. It’s easier for us, since little disassembly is required which saves us time and manpower.
For a CIP program for one of our plate heat exchangers, we purchased a GDS-C92 descaling pump system including Scalebreak-MP descaler. With this descaling pump system and descaler agent we can now carry out preventive cleaning activities without having to disassemble the entire heat exchanger. This saves us a lot of time and work, so that we have less downtime due to cleaning.
GDS-C92 descaling pump system up to 400 litres

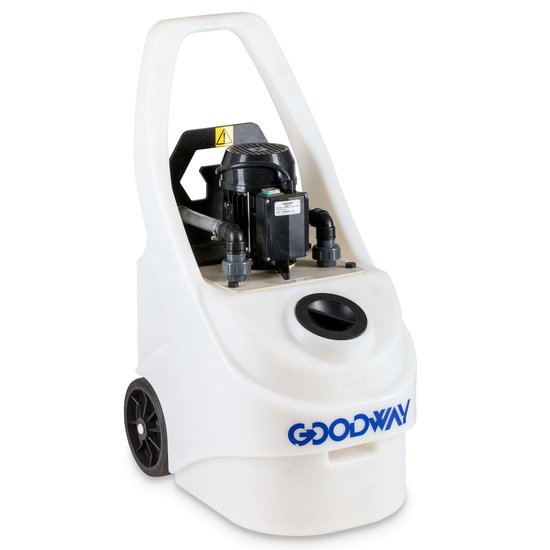

The Goodway GDS-C92 is a compact descaling pump system, designed to circulate volumes of up to 400 litres. The system is mainly used to clean and descale small and medium sized installations, such as heat exchangers, by means of a CIP (clean-in-place) procedure.
The GDS-C92 is self-priming and has a polyethylene, acid resistant tank for maximum safety and ease of use. The descaling pump system can also circulate other fluids, such as glycol and antifreeze, to fill systems during colder (winter) periods.
Applications and usage
The GDS-C92 descaling pump system is mainly used to clean and descale small and medium sized installations (heat exchangers). Common deposits such as limescale, rust and biological deposits can be easily removed by using Goodway's Scalebreak-MP industrial descaler. Examples of installations that can be cleaned with the GDS-C92 are:

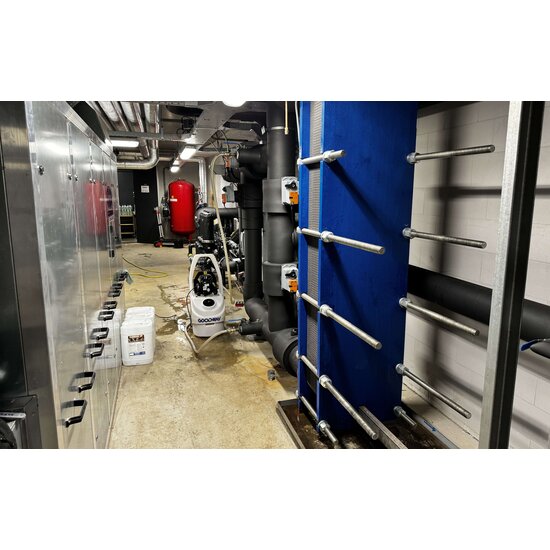

- Plate- and frame heat exchangers
- Modular chillers (brazed plate heat exchangers)

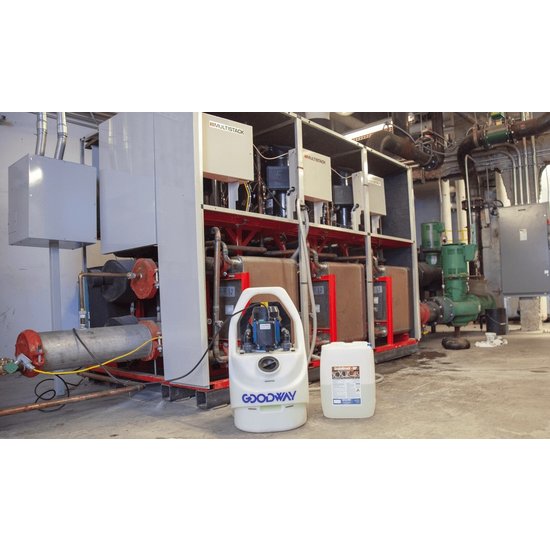

- Water-cooled chillers/condensers
Think of systems from well-known suppliers and manufacturers, such as: Trane, York, SWEP, Carrier, Multistack, McQuay etc.

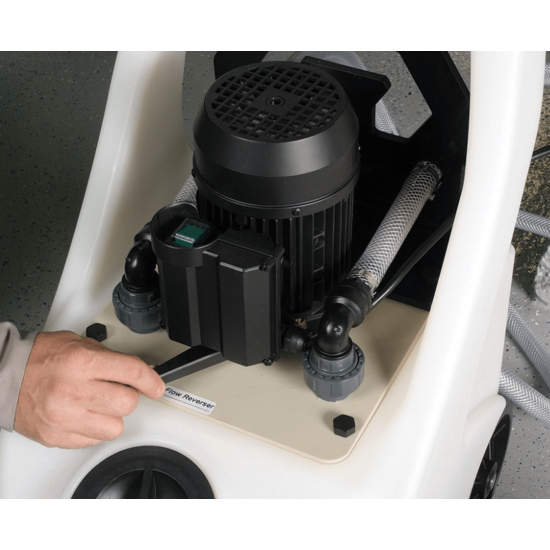

Flow reversal valve
During the descaling process, limescale dissolves and creates foam and gas, a barrier to further scale reduction. Using the Flow Reversal Valve allows the foam and gas to discharge into the tank, eliminating the barrier effect and speeding up the descaling process. With standard pumps the hoses have to be converted to reverse the flow, with the GDS-C40 and GDS-C92 descaling pump systems you only have to turn the valve to instantly reverse the flow.
Cleaning-in-place (CIP)
With most cleaning technologies it is necessary to partially or completely disassemble the plate heat exchanger. Especially when disassembling plates, this can take quite some time and cause further complications such as leakages due to plates being reassembled incorrectly after the cleaning procedure.
In most cases, a preventive CIP cleaning and maintenance program can offer a great solution. CIP basically means that the plate heat exchangers require as little disassembly as possible, before the cleaning can start. The system can remain on site and the plate pack can also stay compressed. Read the full blog about cleaning-in-place here (reading time approx. 5 minutes)
Specifications GDS-C92
- Polyethylene, acid-resistant 56,8 liter tank
- Self-priming centrifugal pump with a flow rate of 79,5 litres/minute
- Can be used for volumes of up to 400 litres
- Motor power of 0,75 HP
- Includes flow reversal valve
- Maximum temperature resistance up to 50°C
- Dimensions 59 x 38 x 89 centimeters (length x width x height)
- Weight 22,7 KG (50 lbs)
Scope of supply GDS-C92
The following accessories are included with a purchase of a GDS-C92 system:
- 1x GDS-C92 descaling pump system
- 2x 3 meter circulation hoses 19mm (reinforced PCV) - 3/4'' BSP x 19mm couplings
