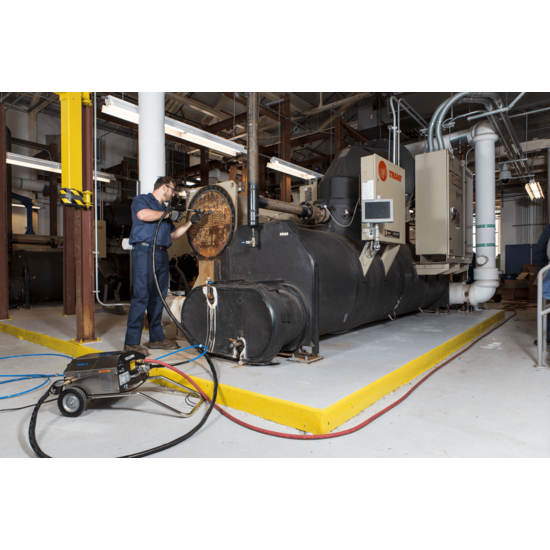

The RAM-5 system has been developed for automatic tube cleaning of (larger) HVAC/R tube heat exchangers, such as water-cooled chillers. The automatic cleaning function makes it possible to clean up to 4x faster.
Automatic tube cleaning

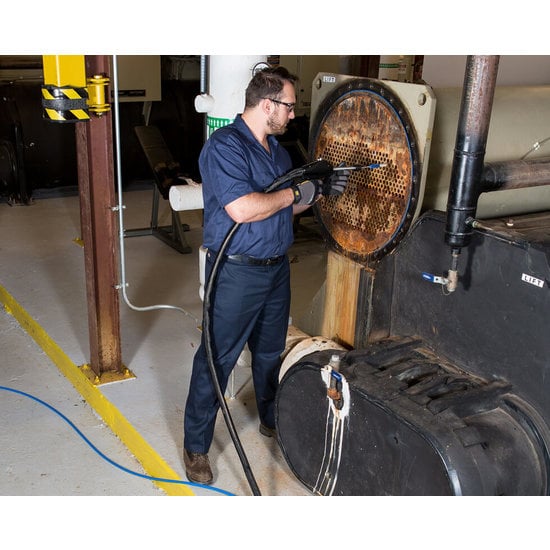

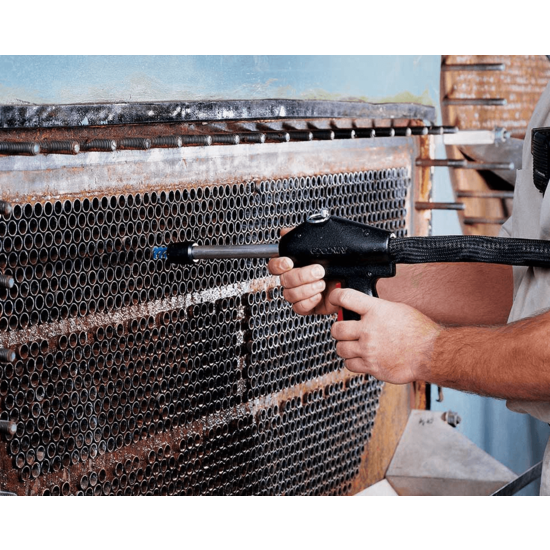

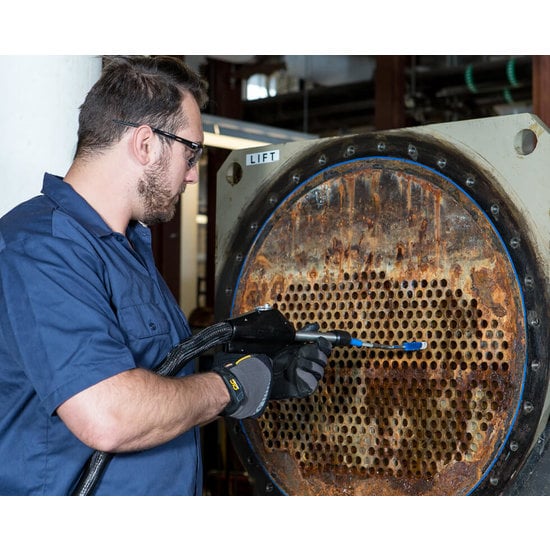

The RAM-5 tube cleaning system has been developed to automatically clean large quantities of heat exchanger tubes at high speed. Think (for example) of the condenser- and evaporator tubes of larger water-cooled chillers. The difference with other tube cleaning devices is that the RAM-5 uses the special ''speed-feed'' technology. In short, this means that the flexible shaft and cleaning brush are automatically fed through the tubes, eliminating manual feeding of the shaft. These innovative features, plus integrated water flush and industrial-strength construction, combine to clean tubes up to 4x faster than other rotary tube cleaners.
Applications and usage
The RAM-5 tube cleaning system is designed to remove light to medium type deposits from heat exchanger tubes. Think of: algae, sludge, mud and biological fouling (biofilm). The system can be used to clean tubes between 11 and 25,4 millimeters (7/16'' to 1''). The RAM-5 is especially interesting for the following systems/installations:
Think of systems from well-known suppliers and manufacturers, such as: Trane, York, Carrier, McQuay etc.
Advantages of the RAM-5 system
The RAM-5 tube cleaning system has many advantages over other tube cleaning systems. Below you will find a summary of the most important benefits.
- The RAM-5 system has an automatic cleaning functionality. It is therefore possible to clean tubes up to 4x faster than with other devices. A cleaning job of 4 hours can therefore be reduced to just 1 hour of work.
- Because the system cleans tubes automatically, much less effort and labor is required from the operator. With other tube cleaning devices, the flexible shaft and cleaning brush must be manually fed through the tubes.
- The RAM-5 system has a setting to adjust the brush rotation speed between 0 and 862,5 revolutions/minute. This offers an extra cleaning effect, especially for enhanced tubes.
- The RAM-5 system has a setting to adjust the feeding speed of the flexible shaft. At the highest setting, the flexible shaft will automatically be fed through the tubes at 0,9 metres/second.

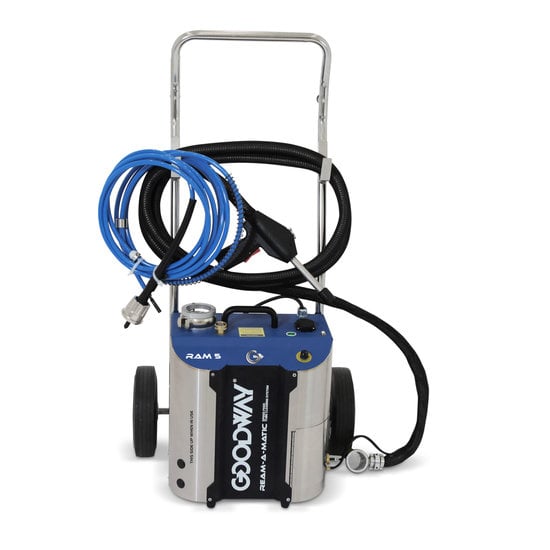

Specifications RAM-5
| Motor power: | 1 HP (0,6 kW) |
| Certification: | CE-certification expected in Q1 2023 |
| Flexible Shaft speed: | 0 - 862,5 RPM (variable speed) |
| Speed-Feed Gun rate: | Up to 3' (0.9m) per second |
| Speed-Feed Gun push/pull force: | 222 Newton (50 lbs) |
| Rotating Direction: | Bi-Directional |
| Water input: | Minimum 2 BAR at 7,5 liters/minute |
| Dimensions (cm) | 43 x 51 x 94 (length x width x height) |
| Weight: | 34 KG (75 lbs) |
Customer Service
If you need further assistance, please contact our customer service to discuss the possibilities and options. You can of course always chat with our employees by starting the chat function at the bottom right of your screen!
Let us help!
| Article number: | RAM-5ADC-ID-50-3 |
Date: 17/01/2023
We use the Goodway RAM-5 system to clean larger water-cooled chillers. The automatic speed-feed system allows for the tubes to be cleaned much faster. This saves us time and labor and ensures that the customer has less downtime.
| Automatic tube cleaning, up to 4x faster | |
| Ideal for water-cooled chillers | |
| Adjustable brush rotation speed | |
| Remove light to medium type deposits | |
| Adjustable feeding speed of the flexible shaft |
