Goodway RAM-4 Tube Cleaning Package
RAM-4 Tube Cleaning Package
€0,00

Cheaper somewhere else?

Let us know!

+31 183 216 170 [email protected]

RAM-4 Tube Cleaning Package

Brand: Goodway
|
Article number: RAM-4A-50-P-17/28
Click to enlarge

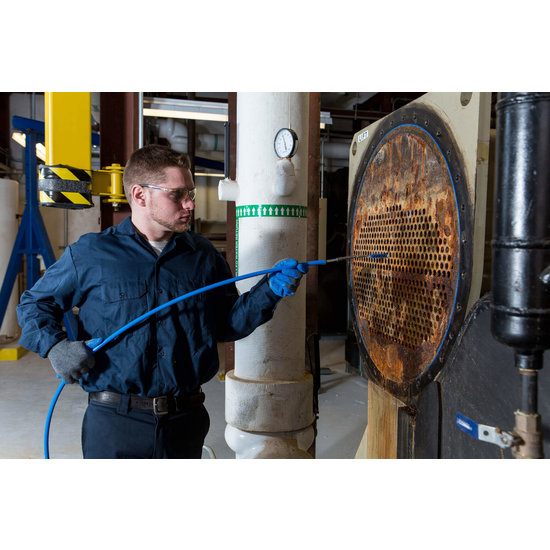

The RAM-4 is an easy-to-use device developed to clean the tubes of heat exchangers, such as water-cooled chillers. This complete package contains all the necessary products to professionally clean tubes.

More info

More product information:

Customer reviews:

Information

Complete tube cleaning package

The RAM-4 tube cleaning package has been put together to offer a complete package for the professional cleaning of heat exchanger tubes. The package is equipped with the RAM-4 tube cleaning system, flexible shafts, brushes, and a maintenance kit for the shafts. The package can be used by both end customers with their own installation and contractors active in the service and cleaning sector. This package is slightly more extensive and therefore contains, for example, more brushes and accessories.


Applications and usage

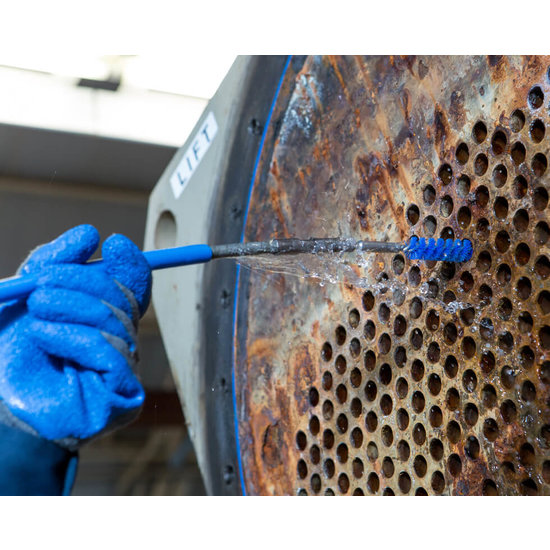

The RAM-4 tube cleaning system is designed to remove light to medium type deposits from heat exchanger tubes. Think of: algae, sludge, mud and biological fouling (biofilm). The complete package is interesting for tube diameters between 11-28 millimeters and with a maximum tube length of 6 to 6,5 metres. The RAM-4 is especially interesting for the following systems/installations:

Think of systems from well-known suppliers and manufacturers, such as: Trane, York, Carrier, McQuay etc.

Features RAM-4

The RAM-4 system has been developed to clean heat exchanger tubes as effectively and efficiently as possible. The system is therefore equipped with various useful features, such as:

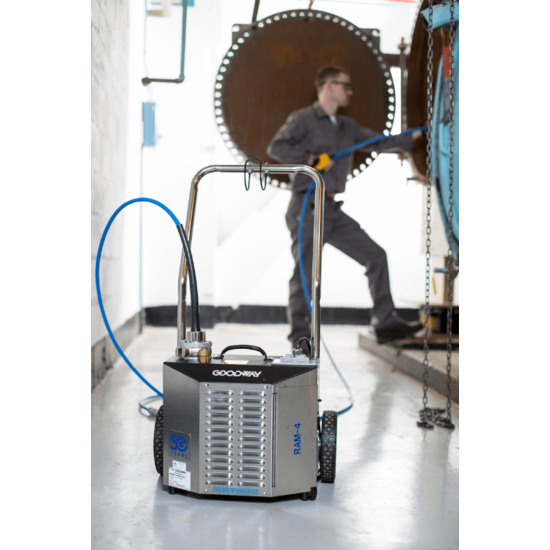

  • Equipped with a mobile dolly with 2 large wheels, making it easy and quick to transport on-site.
  • Simple in use, fixed speed settings so that little training is required to use this device.
  • Price-wise one of the best devices for tube cleaning jobs, such as cleaning (smaller) water-cooled chillers.
  • Fitted as standard with a (patented) quick coupling manifold. This allows the operator to connect the flexible shaft to the tube cleaning system within seconds.
  • Flexible shafts and brushes can rotate in either direction thanks to the bi-directional foot switch.

Specifications / Scope of delivery

This package contains the following products & accessories (I.D. stands for internal diameter):

Package for diameters 11-16 millimeter:

  • 1x RAM-4 Tube Cleaning System
  • 1x GTC-702Q-25 (Flexible shaft with Quick Connect coupling, 9,5 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 11-13 MM
  • 1x GTC-703Q-25 (Flexible shaft with Quick Connect coupling, 13,0 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 14-16 MM
  • 20x GTC-211Q-7/16 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 11-12 MM
  • 20x GTC-211Q-1/2 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 13-14 MM
  • 20x GTC-211Q-9/16 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 15 MM
  • 20x GTC-211Q-5/8 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 16-17 MM
  • 20x SGB-Q-075 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 12-16 MM
  • 2x GTC-205Q-DT (Drill tool with centrating core for drilling open clogged tubes) - FOR TUBE I.D. 12,7-14,3 MM
  • 1x Chiller Bib Kit (Special collection bag for the tube plate, to collect water and deposits)
  • 1x GSL-705 (Maintenance lubrication unit for flexible shafts)
  • 2x GSL-LU1 (Special oil for flexible shafts, in conjunction with GSL-705 lubrication unit)

Package for diameters 17-28 millimeter:

  • 1x RAM-4 Tube Cleaning System
  • 1x GTC-704Q-25 (Flexible shaft with Quick Connect coupling, 14,3 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 17-28 MM
  • 20x SGB-Q-100 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 17-22 MM
  • 20x SGB-Q-125 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 23-28 MM
  • 2x GTC-206Q-DT (Drill tool with centrating core for drilling open clogged tubes) - FOR TUBE I.D. 15,8-25,4 MM
  • 1x Chiller Bib Kit (Special collection bag for the tube plate, to collect water and deposits)
  • 1x GSL-705 (Maintenance lubrication unit for flexible shafts)
  • 2x GSL-LU1 (Special oil for flexible shafts, in conjunction with GSL-705 lubrication unit)

Package for all diameters (11-28 millimeter):

  • 1x RAM-4 Tube Cleaning System
  • 1x GTC-702Q-25 (Flexible shaft with Quick Connect coupling, 9,5 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 11-13 MM
  • 1x GTC-703Q-25 (Flexible shaft with Quick Connect coupling, 13,0 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 14-16 MM
  • 1x GTC-704Q-25 (Flexible shaft with Quick Connect coupling, 14,3 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 17-28 MM
  • 20x GTC-211Q-7/16 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 11-12 MM
  • 20x GTC-211Q-1/2 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 13-14 MM
  • 20x GTC-211Q-9/16 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 15 MM
  • 20x GTC-211Q-5/8 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 16-17 MM
  • 20x SGB-Q-075 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 12-16 MM
  • 20x SGB-Q-100 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 17-22 MM
  • 20x SGB-Q-125 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 23-28 MM
  • 2x GTC-205Q-DT (Drill tool with centrating core for drilling open clogged tubes) - FOR TUBE I.D. 12,7-14,3 MM
  • 2x GTC-206Q-DT (Drill tool with centrating core for drilling open clogged tubes) - FOR TUBE I.D. 15,8-25,4 MM
  • 1x Chiller Bib Kit (Special collection bag for the tube plate, to collect water and deposits)
  • 1x GSL-705 (Maintenance lubrication unit for flexible shafts)
  • 2x GSL-LU1 (Special oil for flexible shafts, in conjunction with GSL-705 lubrication unit)

Didn't find what you're looking for?
Let us help!
Specifications
Product
Article number:RAM-4A-50-P-17/28
Reviews
5,0/5
average of 7 review(s)
By: Mercy Ships - The Netherlands
Date: 23/01/2023

We have purchased a RAM-4 tube cleaning system from Goodway Benelux to clean the coolers on board of one of our vessels. After good results we have decided to purchase a 2nd one for our other vessel. Our engineers are happy with them and they have already been used quite sometimes now.

By: Benndorf und Hildebrand GmbH - Germany
Date: 13/01/2023

We used older Goodway machines to clean water-cooled chillers and decided to replace them with the newer RAM-4 models. These tube cleaning systems are easy to use and very effective. We just bought a second RAM-4 package.

By: Firma Eisblock - Germany
Date: 13/01/2023

After a detailed consultation on site in Holland, we decided to purchase a RAM-4 tube cleaner, which we also immediately could take with us. We use the RAM-4 to clean water-cooled chillers and are very happy with it.

By: Beznau Nuclear Power Plant (Axpo) - Switzerland
Date: 09/09/2022

We have already used the RAM-4 tube cleaning device several times on all 16 generator- and lubrication oil coolers. The most important thing is that the tubes are really clean and the effort (time, labor etc.) is less. The brushes have a long lifetime, we hardly see any wear on them. We decided to proactively replace them after every cooler tube cleaning. The operators who clean the coolers are very satisfied.

By: Parlevliet & Van der Plas - The Netherlands
Date: 04/05/2022

For the tube cleaning of sea water condensers on board of our vessels we are using several RAM-PRO and RAM-4 systems. The tube cleaners do the job seamlessly in combination with the rotating brushes.

By: Puratos NV - Belgium
Date: 26/04/2022

After having rented the RAM-4 tube cleaning system a number of times for tube cleaning jobs, we decided to purchase it. The system is very easy to operate and is an ideal solution for quick and safe cleaning of shell & tube heat exchangers.

By: Remia CV - The Netherlands
Date: 26/04/2022

We had some deposits inside the tubes of one of our shell & tube heat exchangers on site. By using the RAM-4 device with the correct SGB nylon brushes, we were able to remove the depsoits quickly and easily. The RAM-4 is an ideal, compact system for tube cleaning jobs.
