The AWT-100 is a powerful device developed to clean heat exchanger tubes and piping. The system is air-powered and therefore a favorite in the industrial cleaning sector. The device can be used with or without water.
Customer reviews:

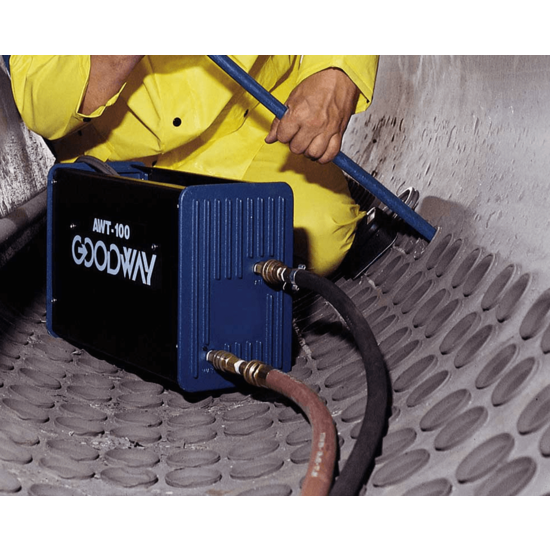

We use the AWT-100 tube cleaning system in combination with flexible shafts and spider brushes to remove accumulation of fouling within our transportation piping, without water. We have already used the system multiple times, it's really a great product!
Compact tube cleaner

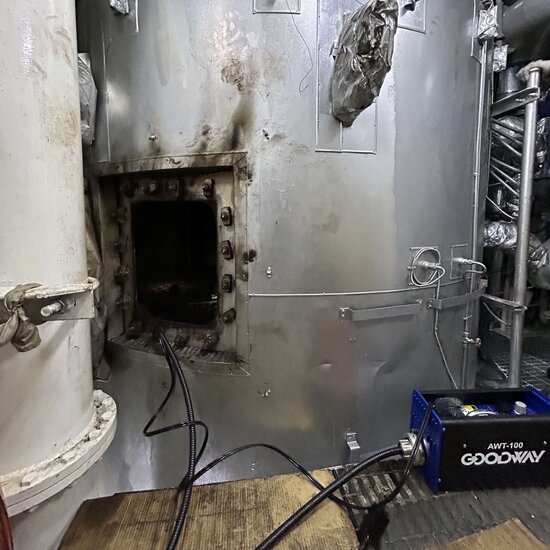

The Goodway AWT-100 tube cleaning system has been developed for the cleaning of heat exchangers tubes and various types of piping easily and quickly. The system is equipped with a robust air powered motor with a maximum power of 2 HP. The AWT-100 has a speed and torque control, allowing the operator to optimally set the speed and torque settings based on the application. The AWT-100 is Goodway's lightest and most compact tube cleaning system with a weight of only 13 KG. That is why this device is also very popular in the maritime industry, where it is often used for cleaning boiler fire tubes. The system can be used with or without water.
Applications and usage
The AWT-100 tube cleaning system is designed to remove light, medium, and hard type deposits from heat exchanger tubes and various types of pipes. Think of: sludge, mud, soot, ash, and scale. The system can be used for different tube diameters, usually from about 14-15 millimeters and up. The AWT-100 is especially interesting for the following systems/installations:
- Shell and tube heat exchangers
- Boiler fire tubes
- Falling film evaporators
- Water-cooled chillers/condensers
- Flue gas coolers
- Dry pipe cleaning of production- and vacuum piping
Features AWT-100
The AWT-100 system has been developed to clean heat exchanger tubes and piping as effectively and efficiently as possible. The system is therefore equipped with various useful features, such as:
- Compact and lightweight (13 KG) - easy to carry around and transport, weighs less than half of other tube cleaners. Ideal for tight work spaces.
- Ability to change speed and torque to get the ideal setting to suit the cleaning application.
- Very powerful motor with a maximum power of 2 HP, has a variable speed of 500-3000 revolutions/minute, suitable for heavy-duty cleaning jobs; such as drilling open clogged tubes.
- Air powered motor is very reliable and offers extra safety, especially on industrial sites and factories.
- System can be used with or without water, also very effective for dry pipe cleaning of, for example, boiler fire tubes.
- Only rotate clockwise with threaded brushes and tools for the strongest connection.
Specifications AWT-100
- Motor power: 2 HP (air powered)
- Speed: 500-3000 revolutions/minute (adjustable)
- Direction of rotation: clockwise only
- Very compact size and lightweight device
- Water requirements: minimum 2 bar at 7,5 litres/minute
- Air requirements: minimum 4,1 BAR - 0,5 m3/min air, maximum 7 BAR - 2,0 m3/min air
- Noise during use: 90 - 100 dB
- Dimensions: 48 x 15 x 26 centimeters (length x width x height)
- Weight: 13 KG (29 lbs)
Let us help!
| Article number: | AWT-100 |
