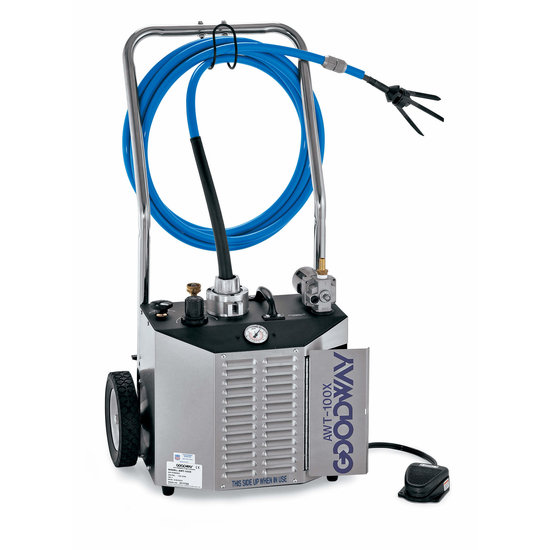

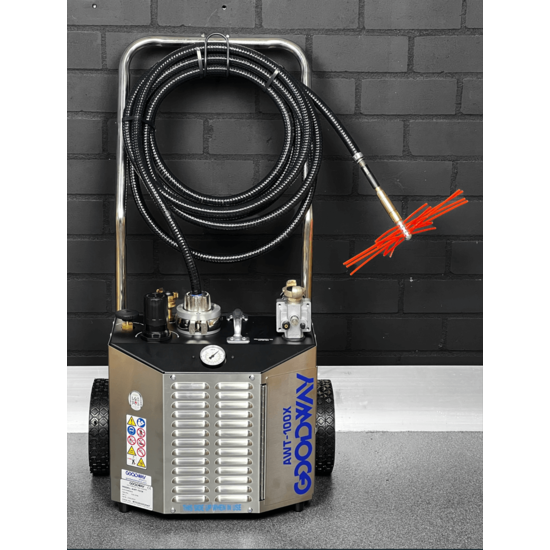

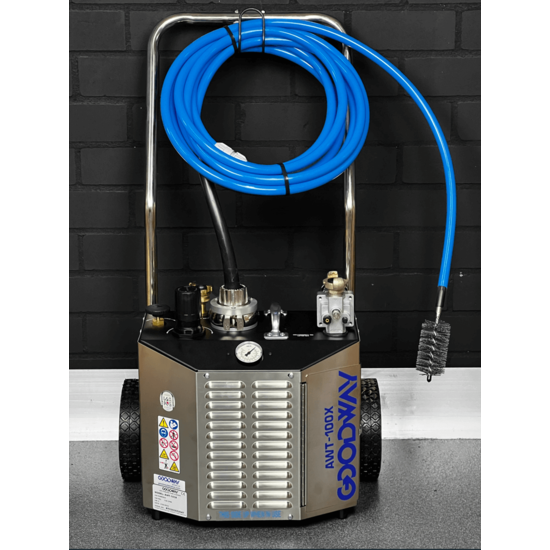

AWT-100X Tube Cleaning System (Heavy Duty)
The AWT-100X is Goodway's most powerful system. The system is powered by compressed air and has an engine power of 4 HP! In addition, the AWT-100X has a variable speed of 500-3000 RPM.
AWT-100X Tube Cleaning System (Heavy-Duty)
The AWT-100X is Goodway's most powerful tube cleaning system available. Because the system is powered by compressed air, it can deliver up to 4 HP engine power under optimal conditions! This is directly related to the high variable speed of 500-3000 RPM. Because the system can rotate so quickly and powerfully, it is also possible to carry out heavy-duty cleaning jobs/activities.
The AWT-100X can also be used with and without water, making the device very universal, which gives you the options to clean various installations/systems. Because the system has a strong housing and dolly with wheels, the system is easy to move, which is very useful on large industrial sites etc. The AWT-100X has a Quick-Connect coupling system, which allows flexible shafts to be connected to the system at lightning speed ( <5 seconds!).
The biggest advantage of the AWT-100X is that it is fully air powered. So there are a lot less parts in the machine. This makes the system very reliable during use. it is therefore also very rare that an AWT-100X will break down during operation. The only important aspect is that the air motor is always lubricated with pneumatic oil. This is standardly included with purchase/rental. (Located before the air intake coupling)
Applications within the industry
The AWT-100X is a universal system that can be used for almost any tube cleaning application, this is because the system can operate with- and without water. The AWT-100X is often used for industrial purposes. These applications can vary from simple to extremely challenges, see a few examples below:
- Process heat-exchangers (often found within the petrochemical/process industry).
- Falling film evaporators
- Firetubes of a boiler system
- Production/process lines (dry)
- Watercooled condensers/chillers
- Flue Gas Cooler tubes
How does a tube cleaning system work
In this short 7 minute video below you will learn almost everything about the Goodway tube cleaning systems and accessories. In addition, you can see how the equipment is used and what the important tips are regarding maintenance of the products.
Specifications AWT-100X
| Motor Power: | Maximum 4 HP (3 kW) |
| Certifications: | CE / ARBO (VA) |
| Rotations/Minute: | 500 - 3000 RPM (Variable Speed) |
| Rotating Direction: | Only clockwise (right) |
| Air intake: |
Minimum 5 BAR - 3,0 m3/min air Maximum 7 BAR - 3,6 m3/min air |
| Noise in decibel (dB) |
90 - 100 dB (hearing protection required) |
| Dimensions (cm): | 43 x 51 x 94 (Length x width x height) |
| Weight: | 25 KG (54 lbs) |
Usage Video's
In the videos below you can see how our customers use the AWT-100X for their systems/applications:
- Cleaning of a heavily deposited process tube/pipe: CLICK HERE FOR VIDEO
- Cleaning of evaporator tubes in the dairy industry: CLICK HERE FOR VIDEO
Why invest in a Goodway system?
Goodway has been the market leader in innovative cleaning and maintenance equipment for over 50 years. Over the years, the products have become increasingly better and tailored to the wishes of the customer. Goodway equipment focuses on quality and service. As a result, we do not need focus on being the cheapest. Below you will find a number of arguments/USP's (unique selling points):
- Goodway systems are an investment that will last for a longer period of time. With proper maintenance of the system(s), they can last for years.
- Goodway offers a worldwide service network, so you can get service and/or spare parts for your device(s) anytime, anywhere.
- Goodway offers high-quality equipment that makes cleaning and maintenance work faster, smoother and safer.
- Goodway devices are often multi-purpose, allowing you to clean and maintain different systems/installations with the same equipment!
Customer Service
If you need further assistance, please contact our customer service to discuss the possibilities and options. You can of course always chat with our employees by starting the chat function at the bottom right of your screen!
Let us help!
| Article number: | AWT-100X |
Date: 02/05/2022
We urgently needed a complete package to clean the fire tubes of our boiler installation. We have chosen the AWT-100X device + accessories which were available the same day for pickup. The system is very powerful and easy to use. With the right accessories we have been able to get our tubes clean again. We are very satisfied with the device and accessories.
Date: 02/05/2022
After cleaning our fire tubes with high-pressure water, a lot of deposits remained inside the tubes. That is why we have opted for a mechanical technique to remove the deposits by means of rotating brushes and tools. An employee of Goodway Benelux helped us during the delivery with an explanation and demonstration. An extra advantage is that we will use less fuel to produce the same heat. The more deposits inside the tubes, the more energy it takes to make steam. We are satisfied.
Date: 26/04/2022
We use the AWT-100X tube cleaning system as an addition to our cleaning solutions because it is not always necessary to use large machines such as a high-pressure units of 1000 bar 750 hp 260 l/minute for tube cleaning jobs. The advantage of the AWT-100X is that we can use this machine with or without water, the device does what it is supposed to do and gives us a lot of new possibilities.
Date: 25/04/2022
We tested the AWT-100X on our falling film evaporators and our employees were immediately impressed. The device is light, easy and safe to use. After a short introduction, we were able to get started with the device on our own. In addition, the support of Goodway Benelux was very polite and well prepared. After the short test phase, the device was immediately ordered.
| Strongest tube cleaning system from Goodway | |
| Perfect for cleaning and maintenance of heat exchangers, condensers and boiler / catalyst tubes! | |
| Universal system, can be used for various industrial applications! | |
| Variable Speed of 500-3000 RPM | |
| Includes heavy-duty dolly with wheels for easy transportation |
