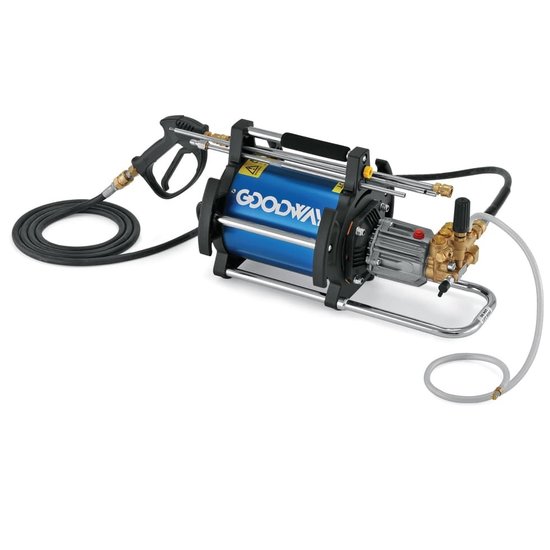

CoilPro CC-400HF Low Pressure Systeem
The CC-400HF is an innovative coil cleaning system, designed to clean various air-cooled technical installations, such as condensers, chillers and dry coolers. The device is designed to achieve the best possible cleaning effect, without damaging crucial parts (such as the fins). This is because the CC-400HF operates entirely on the concept of low pressure and high water flow. For example, the system has an output of ''only'' 30 BAR water pressure in combination with 12 liters/minute of water flow. This allows you to effectively clean the thickest coils without damaging the surface, which unfortunately often happens when using a traditional high-pressure cleaning system.
The CC-400HF system is ideal for end users and contractors. The device is compact and easily fits in a service bus or van. In addition, the CC-400HF is set up quickly, so that you can start cleaning the installation(s) almost immediately. By using Coilshine, you can also clean and degrease the coils in one sweep! This will not only increase the air flow, but also increase the heat transition. This is because grease deposits have a negative effect on the efficiency of the system. That is why it is so important to always use a good cleaning agent.
Importance of cleaning and maintenance
Air-cooled systems such as condensers and chillers have coils that must be cleaned regularly. When these coils are full of atmospheric pollution, the airflow will drop greatly. However, it is (very) important that there is a free air flow. If this is not the case (e.g. due to deposits on the fins), the system will offer reduced heat transfer. This is because the condensing temperature rises greatly. This will increase energy consumption quickly and significantly. In some cases, a fouled system can use 10 to 30% more energy than a cleaned system with maximum airflow!
Applications within the HVAC
The CC-400HF is especially interesting for the following systems/installations:
Think of systems from well-known suppliers and manufacturers, such as: Trane, York, Carrier, McQuay etc.
Specificaties CoilPro CC-400HF
||30 BAR - 12 liter/minute
||CE / ARBO (VA) / NEN3140
|Input of cleaning agent:
||Automatic suction + dosing (1:10) via injection hose
||Minimum 2 BAR at 12 liter/minute
|Dimensions(cm) + weight:
||77 x 31 x 33 (length x width x height) - 20,5 KG (45 lbs)

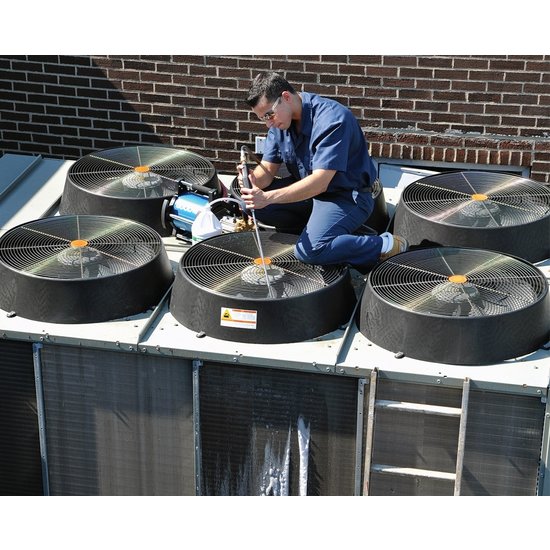

When cleaning large systems such as V-format drycoolers, it is important that the coils are cleaned from both sides. This way you can be sure that all coils are clean and open. You also ensure that the deposits are sprayed out of the system. Normally this is very difficult to do as the fans have to be disconnected and moved. However, Goodway supplies useful accessories for this, such as a thin spray lances with a 90 degree spray tip. This allows you to enter the system through the fan, allowing you to spray the coil(s) from the inside-out. All this without having to disassemble any of the fans! This saves you a lot of time. In addition, technicians can also go out to clean a large condenser by themselves.
In the video below you can see a short demonstration of the CC-400HF system:
Scope of Delivery:
- 1x CC-400HF CoilPro System
- 1x 7,5 Meter power connection
- 1x 3,6 meter spray hose + gun
- 1x 45 centimeter extension lance
- 1x 90 centimeter lance with 90 degree spray tip
- 2 nozzles (yellow for general cleaning) and (black for spraying cleaning agent)
Why invest in a Goodway system?
Goodway has been the market leader in innovative cleaning and maintenance equipment for over 50 years. Over the years, the products have become increasingly better and tailored to the wishes of the customer. Goodway equipment focuses on quality and service. As a result, we do not need focus on being the cheapest. Below you will find a number of arguments/USP's (unique selling points):
- Goodway systems are an investment that will last for a longer period of time. With proper maintenance of the system(s), they can last for years.
- Goodway offers a worldwide service network, so you can get service and/or spare parts for your device(s) anytime, anywhere.
- Goodway offers high-quality equipment that makes cleaning and maintenance work faster, smoother and safer.
- Goodway devices are often multi-purpose, allowing you to clean and maintain different systems/installations with the same equipment!
If you need further assistance, please contact our customer service to discuss the possibilities and options. You can of course always chat with our employees by starting the chat function at the bottom right of your screen!
