The RAM-4 is a professional device developed for cleaning heat exchanger tubes in various industries. This system is ideal for removing soft to medium-hard deposits in tubes.
Versatile rotary tube cleaner

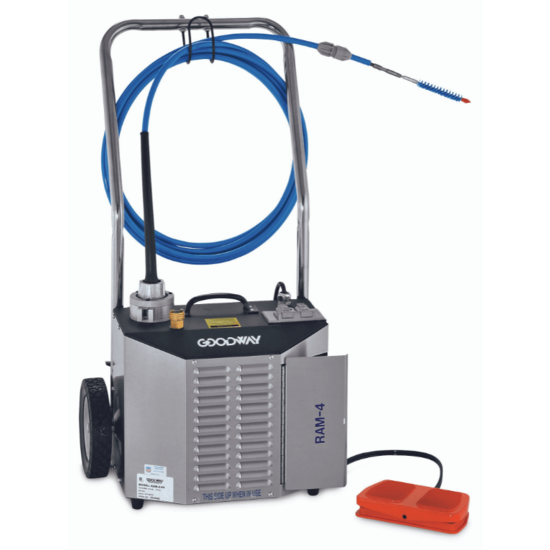

The RAM-4 is a widely used tube cleaning system in commercial and industrial applications. This is due to a number of factors, including performance, as well as overall design. Because the system has a strong housing and dolly with wheels, the system is easy to move. Furthermore, it is a simple and cost-effective, interesting tube cleaner. The system has a fixed speed of 862,5 RPM, also known as the best speed for internal cleaning of tubes. The RAM-4 has a Quick-Connect coupling system, allowing flexible shafts to be coupled to the system at lightning speed (<5 seconds!)
Mechanical cleaning is one of the easiest and fastest methods to clean a tube bundle. Because the system works at low pressure, internal damage to the tubes is virtually impossible. Furthermore, the equipment is very safe, as the only rotating part is the brush. The RAM-4 is therefore an ideal device, especially for the starter to be able to clean tubes quickly, effectively and professionally. In any industry!
The RAM-4 is identical in performance to the RAM-PRO system, only the housing and design of the device is different.
Applications within the HVAC
The RAM-4 is especially interesting for the following systems/installations:

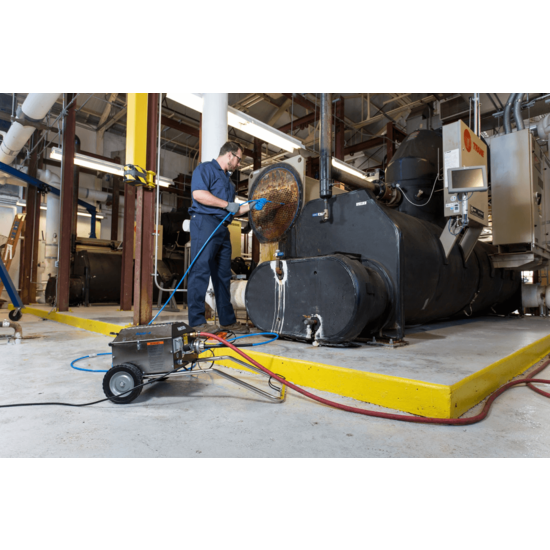

- Watercooled condensers/chillers.
- Process heat-exchangers (often found within the petrochemical/process industry).
- Tubes of an Air fin cooler.
- Evaporator tubes of Aircooled Chillers.
Think of systems from well-known suppliers and manufacturers, such as: Trane, York, Carrier, McQuay etc.
How does a tube cleaning system work
In this short 7 minute video below you will learn almost everything about the Goodway tube cleaning systems and accessories. In addition, you can see how the equipment is used and what the important tips are regarding maintenance of the products.
Specifications RAM-4
| Motor Power: | 0,25 HP (115V) / 0,50 HP (230V) |
| Certifications: | CE / ARBO (VA) / NEN3140 |
| Rotations/Minute: | 862,5 RPM (fixed speed) |
| Rotating Direction: | Bi-Directional |
| Water input: | Minimum 2 BAR at 7,5 liters/minute |
| Dimensions (cm) + Weight: | 43 x 51 x 94 (length x width x height) - 22,0 KG (49 lbs) |
Bi-Directional Rotation
Because the system has a two-sided foot pedal, it is also possible to rotate bi-directional. This means that the brush can rotate both clock- and counterclockwise in the tube. This has a positive effect on the cleaning effect and also (slightly) speeds up the cleaning. You can choose the direction of rotation by simply pressing the foot pedal (left or right).
Usage Video's
In the videos below you can see how our customers use the RAM-4 for their systems/applications:
- Cleaning of a heavily deposited chiller system: CLICK HERE FOR VIDEO
- Cleaning of a heavily deposited heat-exchanger: CLICK HERE FOR VIDEO
Why invest in a Goodway system?
Goodway has been the market leader in innovative cleaning and maintenance equipment for over 50 years. Over the years, the products have become increasingly better and tailored to the wishes of the customer. Goodway equipment focuses on quality and service. As a result, we do not need focus on being the cheapest. Below you will find a number of arguments/USP's (unique selling points):
- Goodway systems are an investment that will last for a longer period of time. With proper maintenance of the system(s), they can last for years.
- Goodway offers a worldwide service network, so you can get service and/or spare parts for your device(s) anytime, anywhere.
- Goodway offers high-quality equipment that makes cleaning and maintenance work faster, smoother and safer.
- Goodway devices are often multi-purpose, allowing you to clean and maintain different systems/installations with the same equipment!
Customer Service
If you need further assistance, please contact our customer service to discuss the possibilities and options. You can of course always chat with our employees by starting the chat function at the bottom right of your screen!
Let us help!
| Article number: | RAM-4A-50-R |
| Weight: | 22000 |
Date: 09/09/2022
We have already used the RAM-4 tube cleaning device several times on all 16 generator- and lubrication oil coolers. The most important thing is that the tubes are really clean and the effort (time, labor etc.) is less. The brushes have a long lifetime, we hardly see any wear on them. We decided to proactively replace them after every cooler tube cleaning. The operators who clean the coolers are very satisfied.
Date: 02/05/2022
For the tube cleaning of sea water condensers on board of our vessels we are using several RAM-PRO and RAM-4 systems. The tube cleaners do the job seamlessly in combination with the rotating brushes.
Date: 26/04/2022
After having rented the RAM-4 tube cleaning system a number of times for tube cleaning jobs, we decided to purchase it. The system is very easy to operate and is an ideal solution for quick and safe cleaning of shell & tube heat exchangers.
Date: 26/04/2022
We had some deposits inside the tubes of one of our shell & tube heat exchangers on site. By using the RAM-4 device with the correct SGB nylon brushes, we were able to remove the depsoits quickly and easily. The RAM-4 is an ideal, compact system for tube cleaning jobs.
| Perfect for internal tube cleaning of chillers, condensers and more. | |
| BI-Directional direction of rotation via foot pedal | |
| Fixed speed of 862,5 RPM | |
| Includes heavy-duty dolly with wheels for easy transportation | |
| Standard included with 230V / 50Hz plug + CE / ARBO / VA / NEN3140 Inspection (only Goodway Benelux does this!) |
