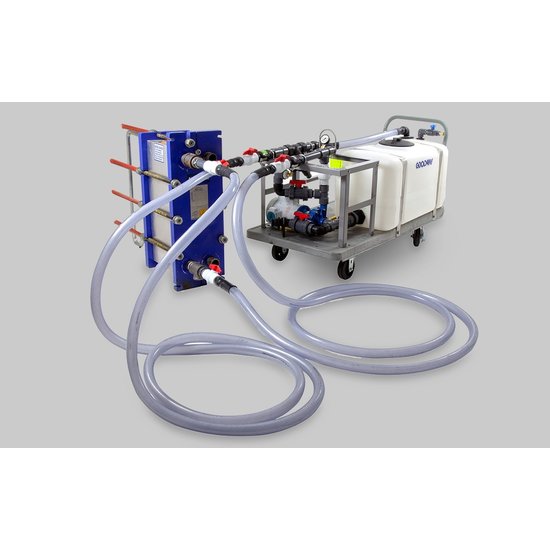

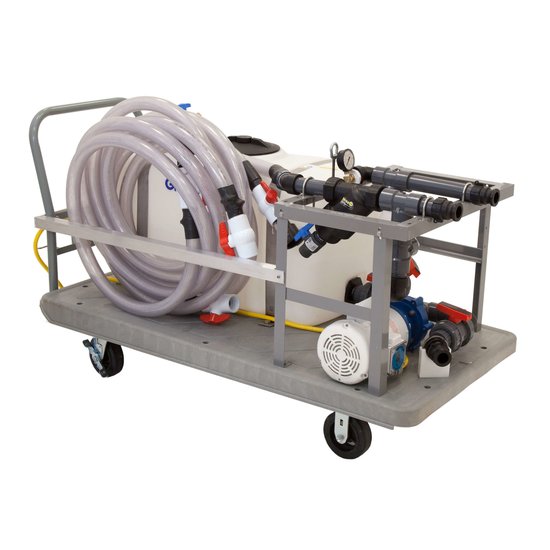

The GDS-100-BV is Goodway's most powerful flushing system. The system combines 360 liters/minute flow with a 190 liter buffer tank. This makes it a complete CIP system, capable of cleaning large industrial systems.
Extra Information:
Chemical cleaning of large industrial installations

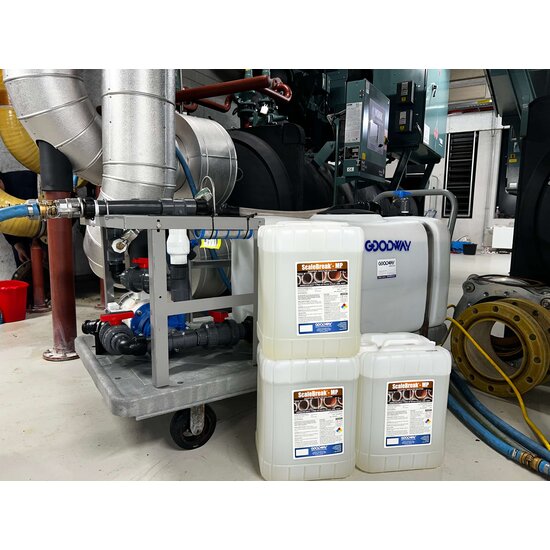

The GDS-100 is Goodway's most powerful flushing system. This system was specifically developed for cleaning medium to large-scale equipment using circular CIP cleaning. Special cleaning agents, such as Scalebreak-MP, are circulated through the system. As a result, the product will react with the contamination and subsequently loosen and remove it. The GDS-100 has very strong specifications, making it an ideal system for many different applications. For example, the system has a flow of 360 liters/minute and a 190 liter integrated buffer tank. This makes it a total system, which is also easily transportable on site.
The GDS-100 is ideal for contractors who need to clean multiple systems. The system is equipped with a bypass valve, which allows the flow to be reduced if smaller installations also need to be chemically flushed. Furthermore, 2 pressure gauges are mounted, so that one can easily read the pressure. In addition, the flushing system looks professional, which is always good for the end customer.
Applications within the industry

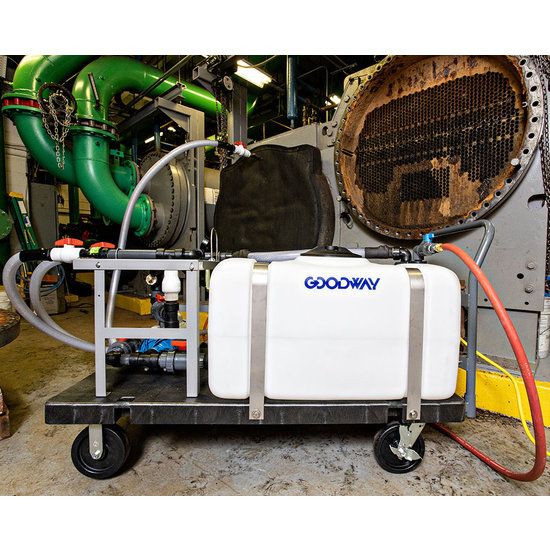

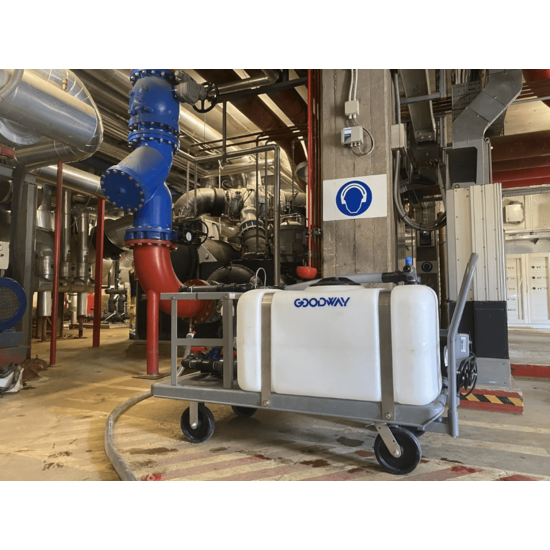

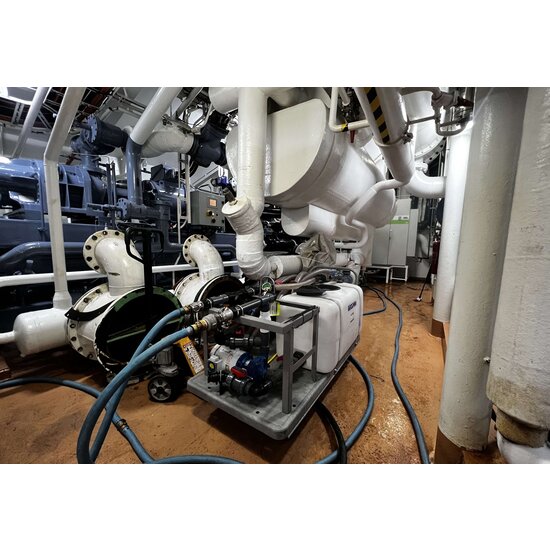

The GDS-100 is specifically designed to be used as a CIP cleaning system. Especially interesting for industrial and commercial cleaning of various (HVAC) installations. For example:
- PHE (Plate-Heat-Exchangers / Plate Heat Exchangers)
- Shell & Tube heat exchangers
- Chillers
- Boilers
Advantages Chemical CIP Cleaning
The chemical CIP (clean-in-place) cleaning of your installation offers many advantages. In this way you not only save a lot of time and costs, but also reduce the down time of the installation. More advantages are listed below:
- Installation does not need to be dismantled.
- Operational within minutes.
- Cleaning with correct agent increased efficiency/cleaning effect.
- Reduces the down-time of the installation tremendously.
GDS-100 Specifications
| GDS-100 voltage: | 220V, 50/60 Hz (7 Amps) |
| Motor power: | 1 HP |
| Certifications: | CE / ARBO (VA) / NEN3140 |
| Flow in Liters: | 362 litres/minute |
| Tank Contents in Liters: | 189 litres |
| Hoses + Coupling (included): | 2x 38 mm hoses 7,5 meter long incl. camlock couplings |
| Additional Features: | Y-piece, 2 pressure gauges & bypass valve for filtration + variable flow |
| Max. Temperature: | 50°C |
| Water resistance: | IP55 certified |
| Dimensions: | 170 x 80 x 90 centimetres (length x width x height) |
| Weight: | 100 KG dry (200 lbs) |
Scope of delivery GDS-100
When you order a GDS-100 pump, you will receive the following items:
- 1x GDS-100 Flushing pump System
- 2x 7,6 meter circulation hoses (1-1/2'' - 38mm) incl. camlock couplings
Let us help!
| Article number: | GDS-100-BV-A |
| SKU: | GDS-100-BV-A |
Date: 11/01/2023

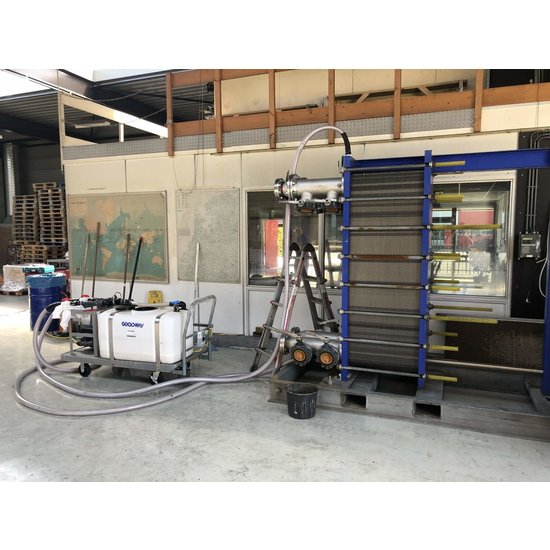

We use the Goodway GDS-100 flushing pump to chemically clean/flush different types of (plate) heat exchangers on location or in our workshop. The device is ideal for removing limescale deposits. This pump has a large tank, which means that even very large installations can be cleaned without any problems. It's a great asset to our company.
Date: 03/01/2023

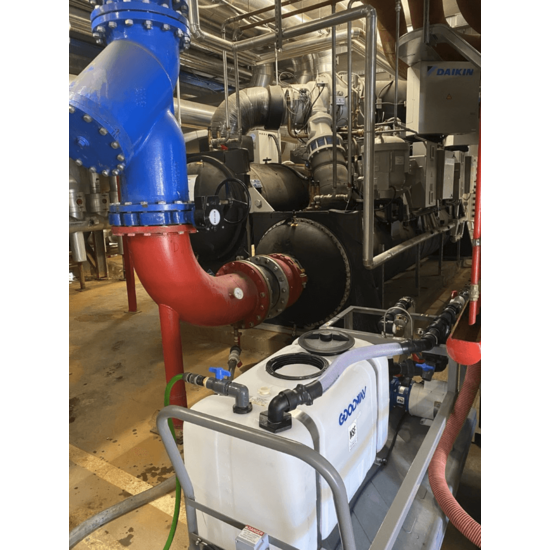

Halfway 2022, we purchased a GDS-100 descaling pump for our CIP (cleaning-in-place) activities. We have already used the system several times for the cleaning and descaling of the tubes in water-cooled chillers. The GDS-100 is an easy-to-use, but professional and effective descaling system.
