The RAM-4X is a professional device developed for cleaning heat exchanger tubes in various industries. This device is also ideal for cleaning the fire tubes of boiler installations.
Powerful rotary tube cleaner

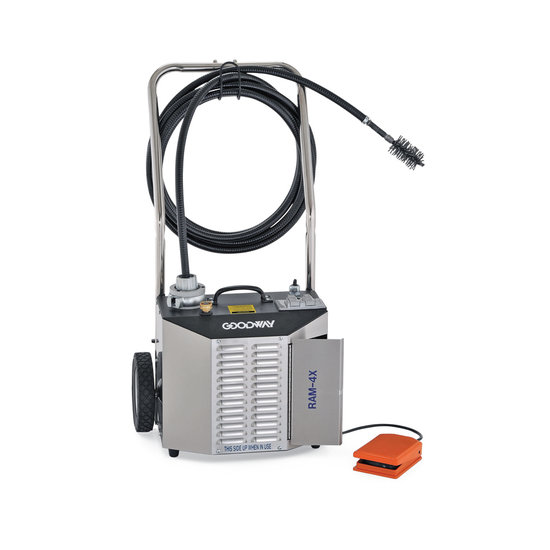

The RAM-4X is specifically designed to clean internal tubes of various installations, such as: heat exchangers, boilers, production tubes etc. Because the system has a more powerful motor than the RAM-4 device, it is possible to rotate faster. The RAM-4X has a fixed speed of 1725 rpm. This also allows heavy deposits to be removed more easily. In addition, the system has a single rotating foot pedal, which means that the system can only rotate clockwise. It is therefore important to always use threaded accessories in combination with this system. With the RAM-4X system it is possible to work both with and without water.
Mechanical cleaning is one of the easiest and fastest methods to clean a tube bundle. Because the system works at low pressure, internal damage to the tubes is virtually impossible. Furthermore, the equipment is very safe, as the only rotating part is the brush. The RAM-4X is ideal for cleaning (heavy) contamination in various types of applications and industries.
How does a tube cleaning system work
In this short 7 minute video below you will learn almost everything about the Goodway tube cleaning systems and accessories. In addition, you can see how the equipment is used and what the important tips are regarding maintenance of the products.
Applications within the industry
The RAM-4X is a universal system that can be used for virtually any tube cleaning application, this is because the system can work both with- and without water. The RAM-4X is mostly used for industrial purposes. These applications can vary from simple to extremely difficult projects, below you can find some examples:
- Process heat-exchangers (often found within the petrochemical/process industry).

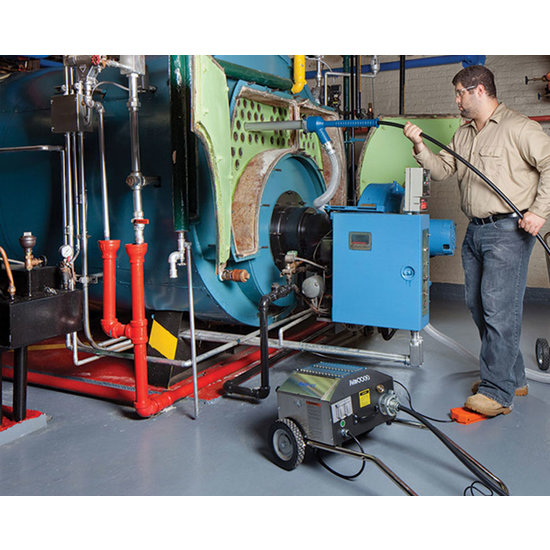

- Firetubes of boiler systems
- Production tubes in the food and non-food industry
Specifications RAM-4X
| Motor Power: | 1 HP (115V) / 1 HP (230V) |
| Certifications: | CE / ARBO (VA) / NEN3140 |
| Rotations/Minute: | 1725 RPM (fixed speed) |
| Rotating Direction: | Only Clockwise (right) |
| Water input: | Minimum 2 BAR at 7,5 liters/minute |
| Dimensions (cm) + Weight: | 43 x 51 x 94 (length x width x height) - 27,0 KG (59 lbs) |
Why invest in a Goodway system?
Goodway has been the market leader in innovative cleaning and maintenance equipment for over 50 years. Over the years, the products have become increasingly better and tailored to the wishes of the customer. Goodway equipment focuses on quality and service. As a result, we do not need focus on being the cheapest. Below you will find a number of arguments/USP's (unique selling points):
- Goodway systems are an investment that will last for a longer period of time. With proper maintenance of the system(s), they can last for years.
- Goodway offers a worldwide service network, so you can get service and/or spare parts for your device(s) anytime, anywhere.
- Goodway offers high-quality equipment that makes cleaning and maintenance work faster, smoother and safer.
- Goodway devices are often multi-purpose, allowing you to clean and maintain different systems/installations with the same equipment!
Customer Service
If you need further assistance, please contact our customer service to discuss the possibilities and options. You can of course always chat with our employees by starting the chat function at the bottom right of your screen!
Let us help!
| Article number: | RAM-4XA-50 |
Date: 04/01/2023
We bought two RAM-4X systems from Goodway Benelux to dry clean our flour piping. The rotating spider brushes easily remove fouling and allow us to reach the maximum capacity as it should be. The device is easy to use and effective. Our employees at both Swiss locations are enthusiastic about the new systems!
Date: 29/04/2022
Recently we have purchased a RAM-4XA-50 system to increase the efficiency of our chillers after a periodic tube cleaning. The projects have gone very well this winter/spring, we are very satisfied with our new machine.
Date: 26/04/2022
Perfect tool for industrial cleaning and very good quality!
| Perfect Systems for Dry Cleaning | |
| Accelerated speed (1725 RPM) | |
| Heavy Duty Dolly for easy transport | |
| Operational within 60 seconds |
| Heavier systems due to stronger motor |
