Complete tube cleaning package
The RAM-PRO-XL tube cleaning package has been put together to offer a complete package for the professional cleaning of heat exchanger tubes. The package is equipped with the RAM-PRO-XL tube cleaning system, flexible shafts, brushes, and a maintenance kit for the shafts. The package can be used by both end customers with their own installation and contractors active in the service and cleaning sector. This is one of the most complete tube cleaning packages and contains many products and accessories.
Applications and usage

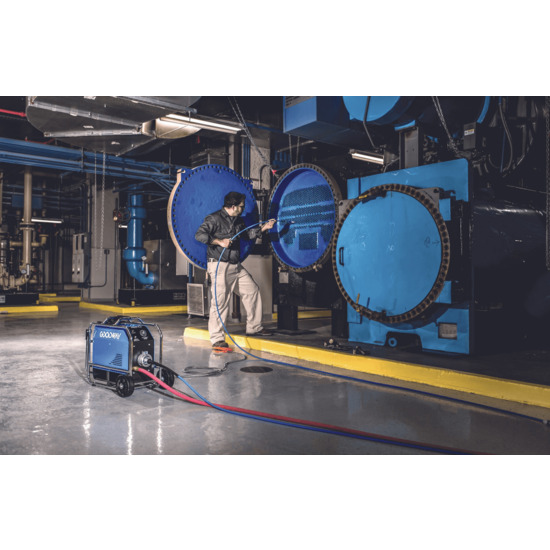

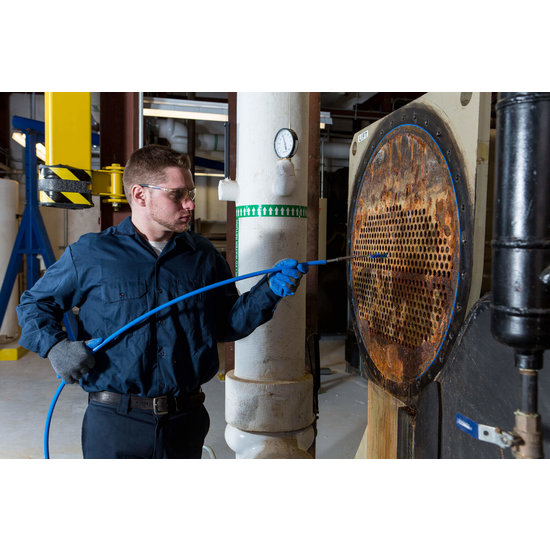

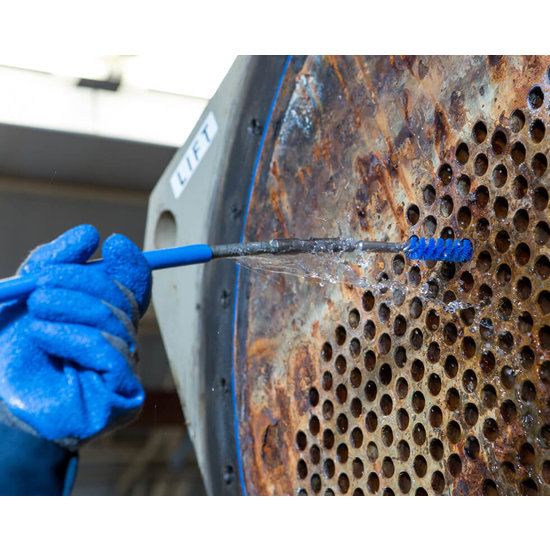

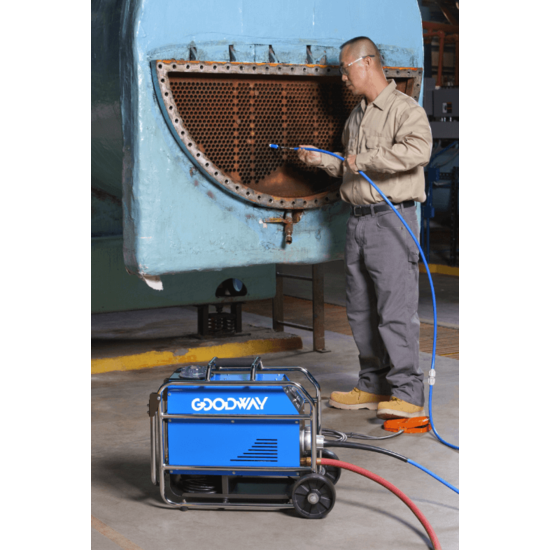

The RAM-PRO-XL tube cleaning system is designed to remove light to medium type deposits from heat exchanger tubes. Think of: algae, sludge, mud and biological fouling (biofilm). The complete package is interesting for tube diameters between 11-28 millimeters and with a maximum tube length of 6 to 6,5 metres. The RAM-PRO-XL is especially interesting for the following systems/installations:
Think of systems from well-known suppliers and manufacturers, such as: Trane, York, Carrier, McQuay etc.
The RAM-PRO-XL system has been developed to clean heat exchanger tubes as effectively and efficiently as possible. The system is therefore equipped with various useful features, such as:
- Variable speed between 0-900 revolutions/minute.

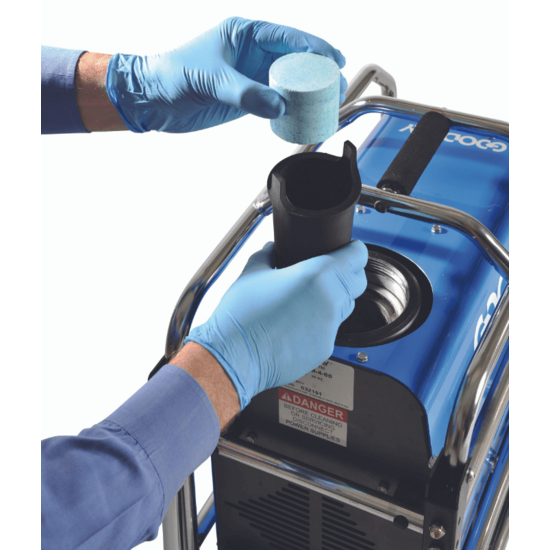

- Integrated tube-guard technology removes bacteria, obliterates dirt buildup, and protects tubes from corrosion and oxidation.
- Sturdy roll cage - protects equipment on job sites and during transport.
- Fitted as standard with a (patented) quick coupling manifold. This allows the operator to connect the flexible shaft to the tube cleaning system within seconds.
- Fitted as standard with an improved chain drive system, which increases system reliability and enables continuous peak performance on site - no more slipping belts or equipment downtime.
- Flexible shafts and brushes can rotate in either direction thanks to the bi-directional foot switch.
Specifications / Scope of delivery

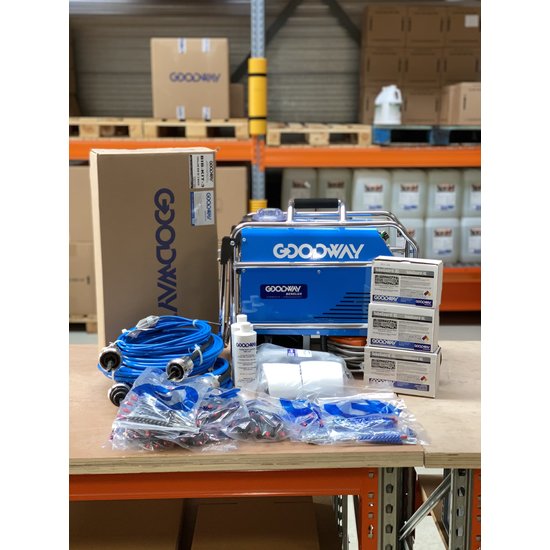

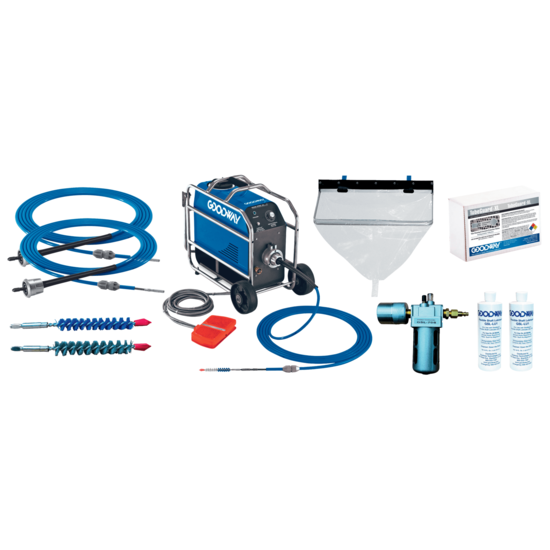

This package contains the following products & accessories (I.D. stands for internal diameter):
- 1x RAM-PRO-XL Tube Cleaning System (Drive system)
- 1x GTC-702Q-25 (Flexible shaft with Quick Connect coupling, 9,5 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 11-13 MM
- 1x GTC-703Q-25 (Flexible shaft with Quick Connect coupling, 13,0 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 14-16 MM
- 1x GTC-704Q-25 (Flexible shaft with Quick Connect coupling, 14,3 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 17-28 MM
- 20x GTC-211Q-7/16 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 11-12 MM
- 20x GTC-211Q-1/2 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 13-14 MM
- 20x GTC-211Q-9/16 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 15 MM
- 20x GTC-211Q-5/8 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 16-17 MM
- 20x SGB-Q-075 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 14-16 MM
- 20x SGB-Q-100 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 17-22 MM
- 20x SGB-Q-125 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 23-28 MM

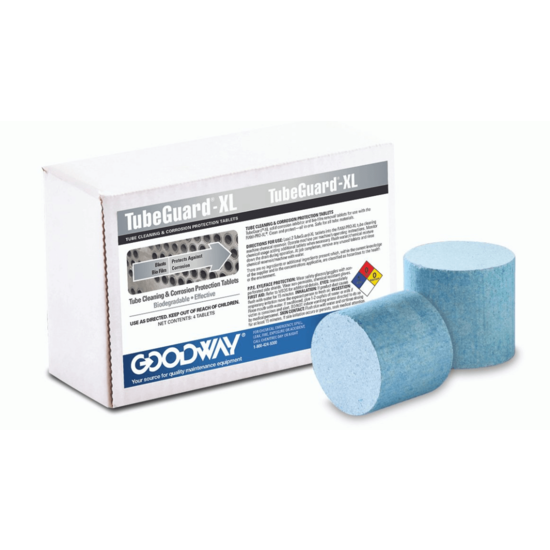

- 2x TubeGuard XL packages (Tablets against oxidation and corrosion, 4 tablets/package)
- 1x Chiller Bib Kit (Special collection bag for the tube plate, to collect water and deposits)
- 1x GSL-705 (Maintenance lubrication unit for flexible shafts)
- 2x GSL-LU1 (Special oil for flexible shafts, in conjunction with GSL-705 lubrication unit)
