Goodway GDS-C40 Descaling Pump System
GDS-C40 Descaling Pump System
€2.595,00

Cheaper somewhere else?

Let us know!

+31 183 216 170 [email protected]

GDS-C40 Descaling Pump System

Brand: Goodway
|
Article number: GDS-C40A
Click to enlarge
€2.595,00 Excl. tax
€3.139,95 Incl. tax
Maak een keuze: *
In stock
|
1-2 days
You have got counting... hours

The Goodway GDS-C40 is a small and compact descaling pump system developed to clean and descale smaller installations using the CIP (clean-in-place) procedure. The GDS-C40 is suitable for circulating volumes up to 250 litres.

More info

More product information:

Customer reviews:

Information

GDS-C40 descaling pump system up to 250 litres

The Goodway GDS-C40 is a small and compact descaling pump system, designed to circulate volumes of up to 250 litres. The system is mainly used to clean and descale smaller installations, such as heat exchangers, by means of a CIP (clean-in-place) procedure. This system is often used in the maritime industry for cleaning heat exchangers in tight, compact engine rooms.

The GDS-C40 is self-priming and has a polyethylene, acid resistant tank for maximum safety and ease of use. The descaling pump system can also circulate other fluids, such as glycol and antifreeze, to fill systems during colder (winter) periods.

Applications and usage

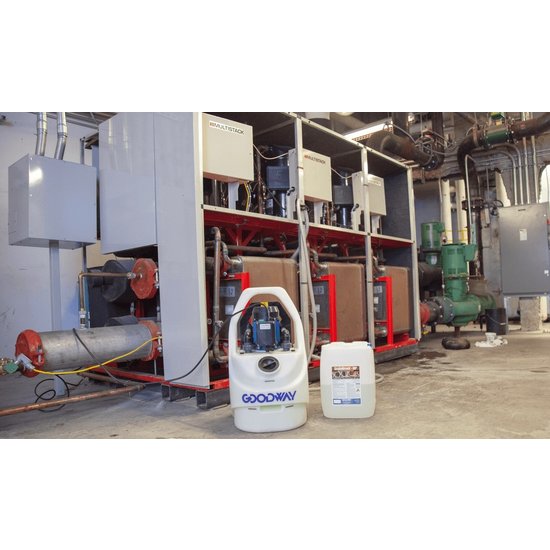

The GDS-C40 descaling pump system is mainly used to clean and descale smaller installations (heat exchangers). Common deposits such as limescale, rust and biological deposits can be easily removed by using Goodway's Scalebreak-MP industrial descaler. Examples of installations that can be cleaned with the GDS-C40 are:

Think of systems from well-known suppliers and manufacturers, such as: Trane, York, SWEP, Carrier, Multistack, McQuay etc.

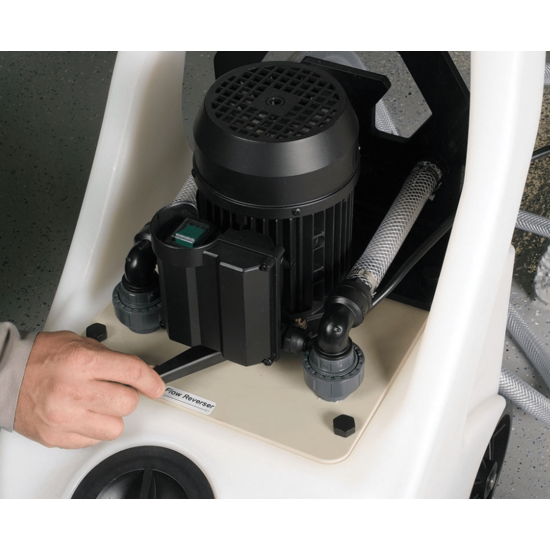

Flow reversal valve

During the descaling process, limescale dissolves and creates foam and gas, a barrier to further scale reduction. Using the Flow Reversal Valve allows the foam and gas to discharge into the tank, eliminating the barrier effect and speeding up the descaling process. With standard pumps the hoses have to be converted to reverse the flow, with the GDS-C40 and GDS-C92 descaling pump systems you only have to turn the valve to instantly reverse the flow.

Cleaning-in-place (CIP)

With most cleaning technologies it is necessary to partially or completely disassemble the plate heat exchanger. Especially when disassembling plates, this can take quite some time and cause further complications such as leakages due to plates being reassembled incorrectly after the cleaning procedure.

In most cases, a preventive CIP cleaning and maintenance program can offer a great solution. CIP basically means that the plate heat exchangers require as little disassembly as possible, before the cleaning can start. The system can remain on site and the plate pack can also stay compressed. Read the full blog about cleaning-in-place here (reading time approx. 5 minutes)

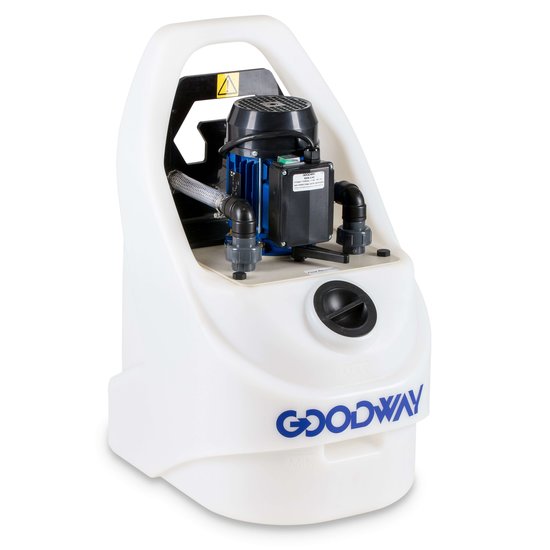

Specifications GDS-C40

  • Polyethylene, acid-resistant 37,8 liter tank
  • Self-priming centrifugal pump with a flow rate of 56,7 litres/minute
  • Can be used for volumes of up to 250 litres
  • Motor power of 0,5 HP
  • Includes flow reversal valve
  • Maximum temperature resistance up to 50°C
  • Dimensions 44 x 38 x 68 centimeters (length x width x height)
  • Weight 16,8 KG (37 lbs)

Scope of supply GDS-C40

The following accessories are included with a purchase of a GDS-C40 system:

  • 1x GDS-C40 descaling pump system
  • 2x 3 meter circulation hoses 16mm (reinforced PCV) - 3/4'' BSP x 16mm couplings
Didn't find what you're looking for?
Let us help!
Specifications
Product
Article number:GDS-C40A
SKU:GDS-C40A
Reviews
5,0/5
average of 4 review(s)
By: Ferienhotel Sonnenhof GmbH – Austria
Date: 24/01/2024

We ordered a descaling pump system alongside ScaleBreak-MP-EU from Goodway Benelux BV. After receiving the equipment we immediately cleaned 6 SWEP brazed plate heat exchangers with good results. The equipment and descaling liquid works well. Soon, we will clean our other heat exchangers as well.

By: Kreiskrankenhaus Prignitz g GmbH - Germany
Date: 20/10/2023

We have purchased a Goodway GDS-C40 descaling pump system from Goodway Benelux for the cleaning and descaling of 30 smaller plate heat exchangers in our hospital. In combination with the cleaning agent/descaler ScaleBreak-MP, we can remove limescale deposits quickly and effectively.

By: 2nd Engineer - 100m+ Superyacht
Date: 31/07/2023

We have used ScaleBreak-MP on various occasions to remove scale and seawater deposits from various coolers on board our vessel. It’s especially effective when combined with the GDS-C40 descaling pump system that we have also purchased from Goodway Benelux. Customer service is also top notch. Highly recommend this company + product range.

By: Parlevliet & Van der Plas - The Netherlands
Date: 02/05/2022

The Goodway GDS-C40 is a compact, but powerful descaling pump system. We use this device for the descaling and cleaning of (plate) heat exchangers on board of our vessels.
